Assembly System siMetrix 46

Cantilever Bracket AK 46-P

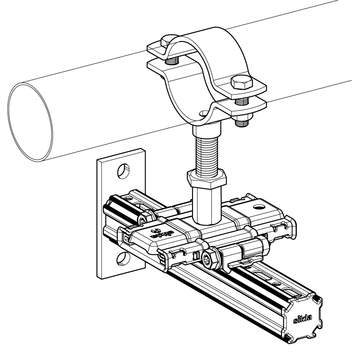

Application

Prefabricated single-arm cantilever installations to wall or other on-site structures

Installation

Connection to the structure using Bolt Anchor AN BZ plus or heavy-duty anchors. Alternatively, fastening to steel beams using Joining Plate AP 46 80/120 (part no. 802158). When used in conjunction with sliding elements, a cross brace (in combination with Tie Rod STR and Blockset PBS 46 M10 x 50) is recommended to resist forces in the axial direction of the pipe. For cantilever lengths ≥ 500 mm, a vertical brace or support is recommended.

Technical Data

Type
L
[mm]
H
[mm]
B
[mm]
t
[mm]
e
[mm]
l x b
[mm]
AK 46-P - 200 200 120 50 8 90 15 x 13
AK 46-P - 400 400 120 50 8 90 15 x 13
AK 46-P - 600 600 120 50 8 90 15 x 13
AK 46-P - 800 800 120 50 8 90 15 x 13
AK 46-P - 1000 1000 120 50 8 90 15 x 13

Type
Vx,zul
[kN]
± Vy,zul
[kN]
± Vz,zul
[kN]
± My,zul
[kNm]
± Mz,zul
[kNm]
AK 46-P 25,42 12,42 11,37 0,67 0,66

Configuration:
Base plate welded to Profile PRO 46-P
Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
AK 46-P - 2000,9010 802209
AK 46-P - 4001,4310 802210
AK 46-P - 6001,981 802211
AK 46-P - 8002,531 802212
AK 46-P - 10003,101 802213
