Stainless Steel Products

Pipe Loop RSL N ss

Application

For pipeline installations of fixed fire entinguishing systems, mainly used for Sprinkler systems.

Scope of delivery

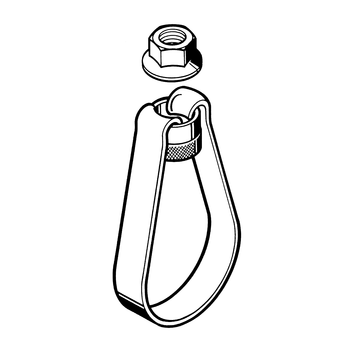

Pipe Loop with rounded edges. Flange nuts and cup nuts are included in loose form.

Technical Data

Type
Nominal load
[kN]
26.9 - 60.3 2.0
76.1 - 114.3 3.5
133 - 168.3 5.0
219.1 8.5

Material:
Stainless steel, A4

Approvals / Conformity

VdS-Approval G4850025; FM-Approval

Pipe Loop N - G4850025 VdS PDF | 338.4 KB FM - Pipe Loop RSL N PDF | 185.1 KB

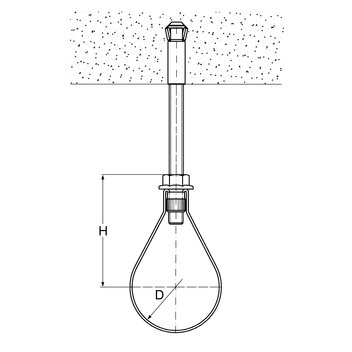

TypeNBConnectionD
[mm]
H
[mm]
W
[kg]
Quantity
[pack]
Part
number
26,93/4"M1027650,06100 116621
33,71"M1034650,06100 116622
42,41 1/4"M1043650,0650 116623
48,31 1/2"M1049700,0650 116624
60,32"M1061790,0650 116625
76,12 1/2"M1077980,1425 116626
88,93"M10901130,1625 116627
108M101101420,1825 116628
114,34"M101151420,2025 116629
133M121351550,2225 116630
139,75"M121421550,2425 116631
159M121611850,2625 116632
168,36"M121701850,2625 116633
219,18"M162212390,5610 116634
