Stainless Steel Products

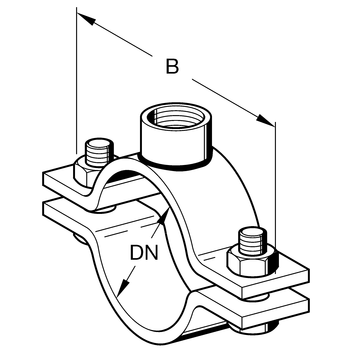

Pipe Clamp Stabil I-1/2" ss

Application

Heavy pipe clamp for industrial application.

Scope of delivery

Two-piece pipe clamp with all around welded 1/2" nut with clamping bolts and nuts.

Installation

Suitable for single-point fixing directly with 1/2" threaded tube or connected by respective adapters up to 1" threaded tube.

Technical Data

Material:
Stainless steel 1.4404

Type
Material
b x s [mm]
Clamping bolts
B
[mm]
Max. adm.
load (tension)
[kN]
22 30 x 5 M10 x 35 86 4.7
27 30 x 5 M10 x 35 93 4.7
34 30 x 5 M10 x 35 102 4.7
44 30 x 5 M10 x 35 114 4.7
49 30 x 5 M10 x 35 119 4.7
61 40 x 5 M12 x 40 136 8
77 40 x 5 M12 x 40 152 8
89 40 x 5 M12 x 40 165 8
115 50 x 5 M12 x 40 192 11
TypeFor pipe
[NB]
W
[kg]
Quantity
[pack]
Part
number
22150,3025 188228
27200,3225 188237
34250,3525 188246
44320,4025 188255
49400,4025 188264
61500,6225 188273
77650,6725 188282
89800,7525 188291
1151001,0510 188300
