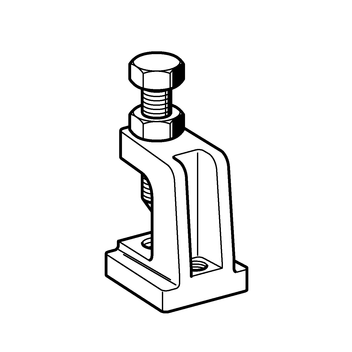

Beam Clamp TCS ss

Application

Heavy-duty connection element, which in combination with grub screws (M8 or M10), are suitable for mounting pipes, ducts and equipment to steel beams (I-, T-, U and angle steel beams).

  • The combination with a Universal Joint ss provides for vertically aligned attachment to inclined beams.
  • Can serve as single mounting element, for installing crossbars and for fixing cantilever structures.
  • Due to their special base profile, Beam Clamps TCS can also be slid along and retained in the opening of Sikla Channels MS 41.

Scope of delivery

Pre-assembled with clamping bolt and locking nut.

Installation

Tighten the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting instructions. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tighten the locking nut for securing the installation.
Use an additional Holding Bracket HK 41 for mounting in the aera of the cutting edge of a channel.
Advice: Read relevant mounting instructions before installation!

Technical Data

Working load:
5.0 kN

This nominal load applies to new Beam Clamps fixed to undamaged beam flanges only.

Material:
Stainless steel A4

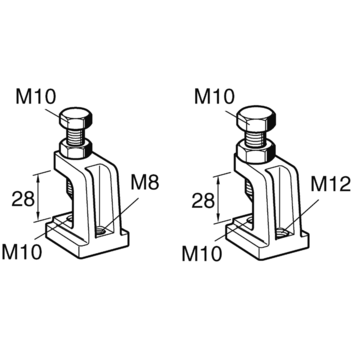

TypeConnectionClamping range on
parallel flange
[mm]
W
[kg]
Quantity
[pack]
Part
number
TCS 1 M10/M8 M10/M8260,2350 170231
TCS 1 M10/M10M10/M10260,2350 116568
TCS 1 M10/M12M10/M12260,2250 110766
