siFramo 80

End Support STA F80-E 45°

Application

The End Support STA F80-E 45° is designed to generate a 45° bracing element in
combination with F80 beam sections or F80 Cantilever Brackets.

Installation

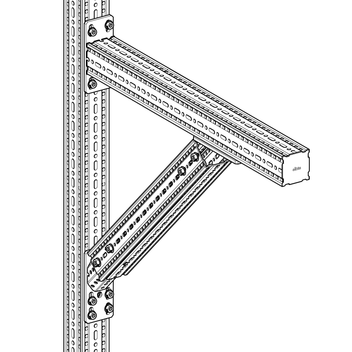

Depending on the situation on site there are two options to use this product:

a) Connection within the siFramo system by connecting with 4 FLS screws to each beam section F80.

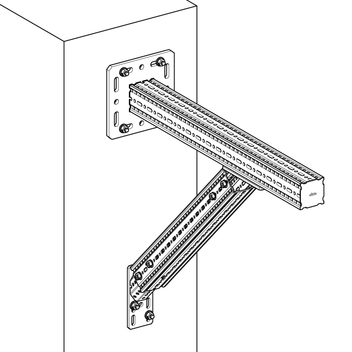

b) Connection to building fabric by using 2 suitable wall anchors in diagonal configuration.

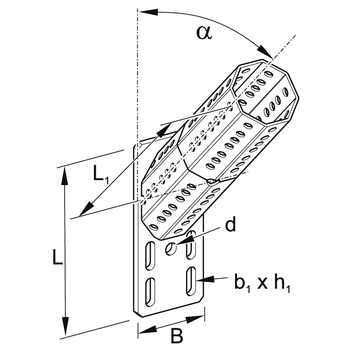

Technical Data

Type
L
[mm]
B
[mm]
L1
[mm]
d
[mm]
b1
[mm]
h1
[mm]
α
[°]
STA F 80-E 45° 190 80 244.5 14 11 20 45

Configuration:
Base plate welded to octagonal element F 80
Material:
Steel, HCP

Approvals / Conformity

CE-mark (Declaration of performance see www.sikla.com/downloads)

Declaration of performance End Support STA F PDF | 189.6 KB

TypeW
[kg]
Quantity
[pack]
Part
number
STA F 80-E 45°2,01 406001
