siFramo 80
End Support STA F 80/30
Application

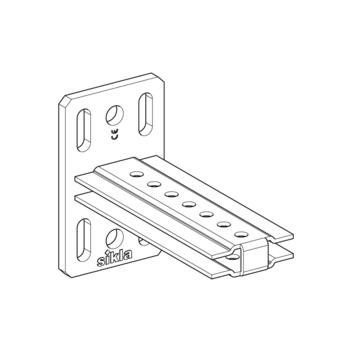

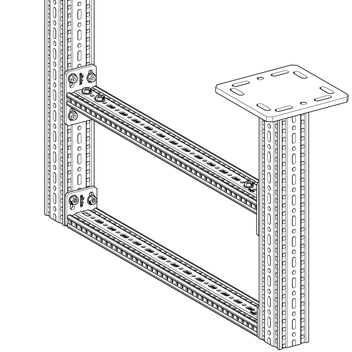

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 80 or TP F 80/30. A connection to Cantilever brackets AK F 80 or AK F 80/30 can also be realised.
Installation
Depending on the situation, different options are recommended:

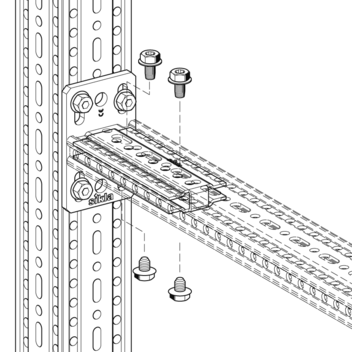

| a) With 2 x 4 Self Forming Screws FLS when used to connect 2 Beam Sections. | |
| b) With 4 Self Forming Screws FLS applied to the insert and 2 suitable M12 wall anchors/fixings when connected to the building structure. |
Technical Data

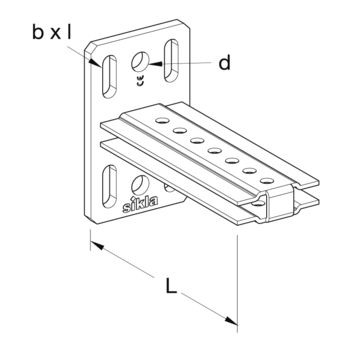

| Type | Dimensions of base plate [mm] | L [mm] | d [mm] | b1 x l1 [mm] |
|---|---|---|---|---|
| STA F 80/30 | 130 x 80 x 8 | 169 | 14 | 11 x 20 |
| Material: | Steel, HCP |
Approvals / Conformity
CE-mark (Declaration of performance see www.sikla.com/downloads)
ETA-24/0471
Declaration of performance End Support STA F PDF | 189.6 KB
