Beam Section Holder TPH F 80
Application

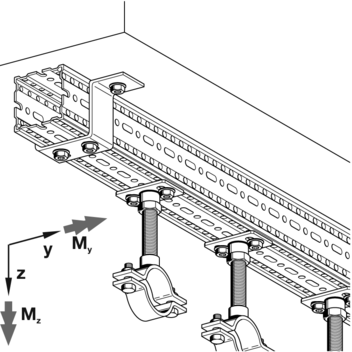

Interface element to connect 90° intersecting Beam Sections F80 or F 80/30. Alternatively the Beam Section Holder TPH may be used to connect only one beam section to an even surface with suitable wall anchors or with cast-in channel accessories.
Installation

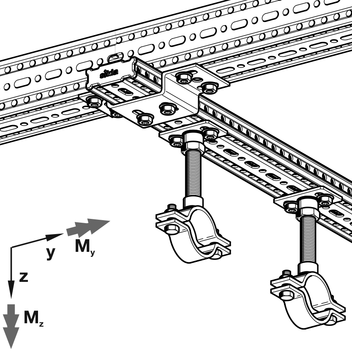

Connecting one Beam Section F80 or F 80/30 90° to another one by using 6 x Self Forming Screw FLS applied through all elongated holes. Connecting to any other surface or member by using 2 x Self Forming Screws FLS through the two elongated holes on the top of the Beam Section Holder TPH F80 plus 2 appropriate fixing elements up to M12 through the two holes “d1”.
Technical Data
| Type | L x w x th [mm] | ø d1 [mm] | Elongated hole LL1 d x a [mm] | Elongated hole LL2 d x a [mm] |
|---|---|---|---|---|
| TPH F 80/30 | 181 x 50 x 4 | 13 | 11 x 20 | - |
| TPH F 80/30 C | 199 x 80 x 4 | 14 | 11 x 20 | 11 x 20 |
| TPH F 80 | 181 x 50 x 4 | 13 | 11 x 20 | - |
| TPH F 80 C | 199 x 80 x 4 | 14 | 11 x 20 | 11 x 20 |
| Type | Fx [kN] | Fy [kN] | Fz [kN] | My [kNm] | Mz [kNm] |
|---|---|---|---|---|---|
| TPH F 80/30 | 6.2 | 20.8 | 13.6 | 0.9 | 0.9 |
| TPH F 80/30 C | 6.2 | 12.7 | 12.3 | 0.6 | 0.5 |
| TPH F 80 | 6.2 | 20.8 | 13.6 | 0.9 | 0.9 |
| TPH F 80 C | 6.2 | 12.7 | 12.3 | 0.6 | 0.5 |
The specified load values are permissible loads and contain the partial safety factors γM2 = 1,25 (DIN EN 1993-1-8:2010-12, chart 2.1) and γG = 1,35 (DIN EN 1990:2010-12, chart A1.2(B)) for permanent actions.
| Material: | Steel, HCP or hot dipped galvanised |
