siFramo 100

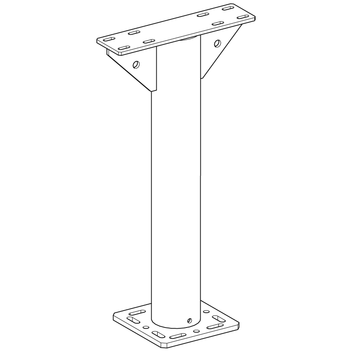

Roof duct DF AH

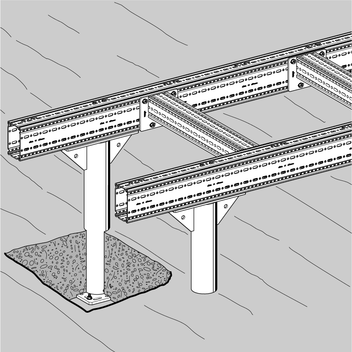

Application

Enables direct connection of TP F 100 and TP F 100/160 support profiles on various roof types.

Installation

Connection of support profiles TP F 100 and TP F 100/160 by means of 8 Formlock screws FLS F.
Fastening to roofs and concrete using heavy-duty anchors M12.
Important: The zinc drain holes in the support tube must be sealed after installation. If insulation is required in the support tube, it can be provided by the customer, e.g. by foaming.

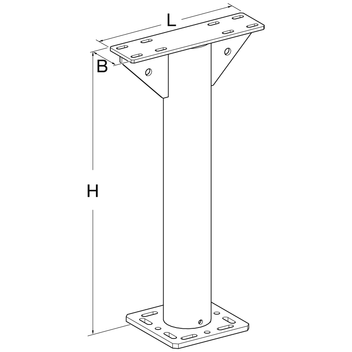

Technical Data

B
[mm]
L
[mm]
H
[mm]
100 383 746

Hole pattern for
Base plate dimensions
B x B x t [mm]
Perforation for anchor
F 100 and F 100/160 220 x 220 x 12 M12

Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
DF AH20,01 117171
