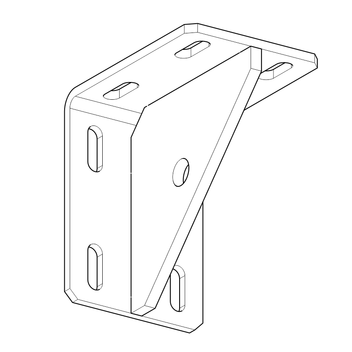

Corner Bracket WD F 100

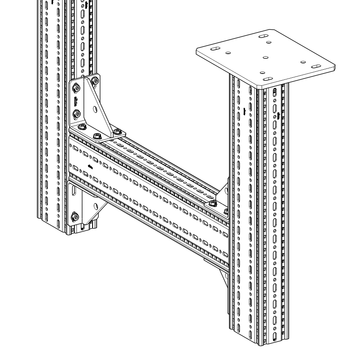

Component to be used for connections between two F100 or F100/160 sections when the structural design requires an alternative to the End Support STA F 100 as the default solution.
Connections with the Corner Bracket WD F 100 allow flexible constrcutions and provide a high load capacity at the same time.

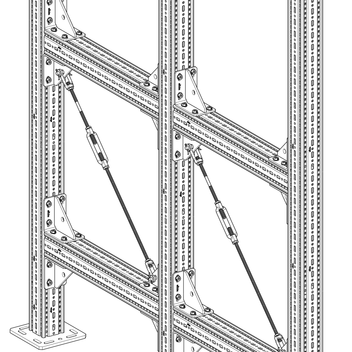

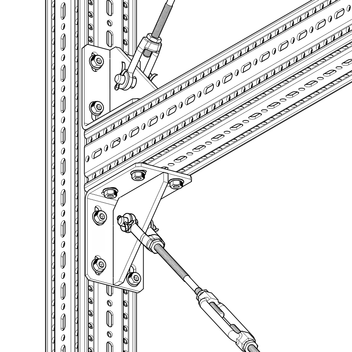

Using the bracket hole (Ø 18mm) additional bracings can be installed and comprehensive solutions can be realized.
To be used in pairs only. 8 pieces of Self Forming Screw FLS are necessary for one Corner Bracket.
| Type|| perm. tensile load bracket hole|
|WD F 100 140/140||45,3|
| Material:||Steel, HCP|
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.com/service/downloads)
Declaration of performance Corner Bracket WD F PDF | 65.5 KB
