siFramo 100

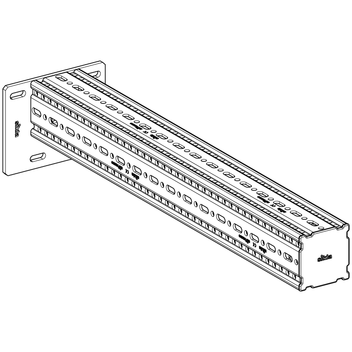

Cantilever Bracket AK F 160-100-E



Application
Galvanised hollow-box-section with welded end-plate to serve as cantilever arm for Beam Section TP F 100/160 (flange side 160) or Beam Bracket TKO F 100/160.
Installation

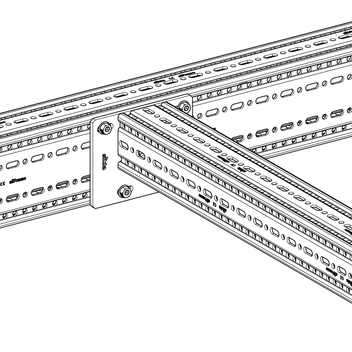

With 4 x Self Forming Screw FLS when fixed to another siFramo 100/160 (flange side 160) hollow- box- section. Fixing to walls and ceilings with suitable wall anchors M10.
Technical Data

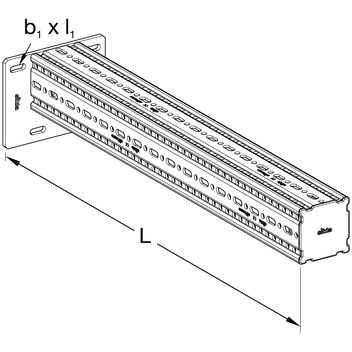

Type | Dimensions of base plate [mm] | L [mm] | b1 x l1 [mm] |
---|---|---|---|
AK F 160-100-E-800 | 160 x 200 | 800 | 11 x 20 |
AK F 160-100-E-1200 | 160 x 200 | 1200 | 11 x 20 |
Configuration: | Plate welded with Beam Section F 100 |
Material: | Steel, HCP |
Declaration of performance Cantilever Bracket AK F PDF | 1.6 MB
Approvals / Conformity
CE-mark (Declaration of performance see www.sikla.com/downloads)
ETA-24/0471
