Insulated Foot Plate SHB HCP
Comprehensive solution incl. protection pad for flat roofs and central energy supply centers with coated floor.
In combination with the Sikla Assembly System, this element allows the realisation of arbitrarily compositions. The water permeable protection pad allows a secure and reliabe support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts or walkways.

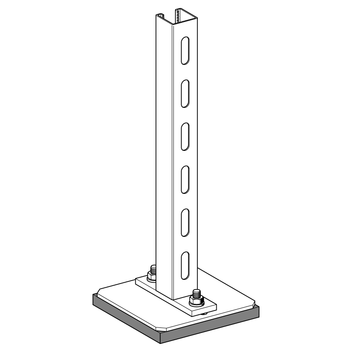

Following elements could be assembled to the Insulated Foot Plate: Slide Elements, Mounting Plates, Support Brackets 150/150, Joints JOI 41 T, Channels MS 41, Cantilever Brackets, End Supports WBD for single channel.
Unscrew the nuts, position the distance between the screws according to the slot pattern of the element to be connected and tighten screws.
| Statical E-module:|| According to |
| 0.8 - 0.9 N/mm2 |
| Dynamic E-module:|| According to |
| 0.6 - 2.2 N/mm2 |
| Compression set:|| DIN 53572|| approx. 4.5 % measured 30 min. |
after release at 50 % compression /
23°C after 72 hrs
| Tensile strength:|| DIN 53571|| 0.40 N/mm2 min.|
| Ultimate elongation:|| DIN 53571|| 70 % min.|
| Tear strength:|| DIN 53515|| 3.4 N/mm2 min.|
| Fire resistance:|| DIN 4102||B2|
Tests to determine the static friction coefficient shall be carried out by the customer. Depending on the used roofing film the customer has to decide if an additional separation layer (e.g. fleece) is necessary. Furthermore the statics have to be verified by a qualified engineer.
| Material:||Steel, HCP, caoutchouc compound material|

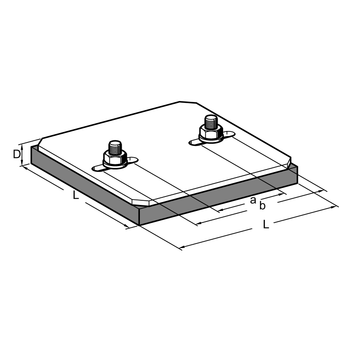

| Type|| L [mm]|| a [mm]|| b [mm]|| D [mm]|
|SHB 160||164 x 164||65||131|| 20|
|SHB 300||304 x 304||65||131|| 20|
|SHB 450||454 x 454||65||131|| 21|
|SHB 600||604 x 604||65||131||23|

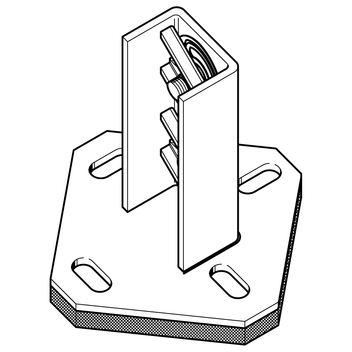

| Type|| Channel height hmax [mm]|| Dimensions of the plate [mm]|
|SHB 41-1||41 - 62|| 110 x 110|
|SHB 41-2||41 - 62||160 x 160|
For other dimensions, see End Support WBD.
