Application

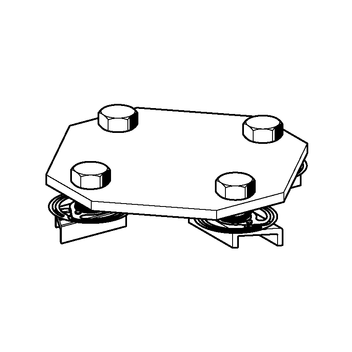

Pre-assembled connecting element for frame structures, optimised for linking channels of the 41 series.

  • Locks automatically when being put in place, and supports its own weight.
  • Secure, form-locking, non-positive connection. Completely pre-assembled with serrated CC nut and clamping screw M10. High stiffness.

Technical Data

Working load:
Fperm = 2.0 kN / per Fitting
Torque:
40 Nm
Material:
Steel, electro-galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
CC-10,3120 181190
CC-20,4610 181199
CC-30,6710 181208
