Pressix CC 41 - Assembly System

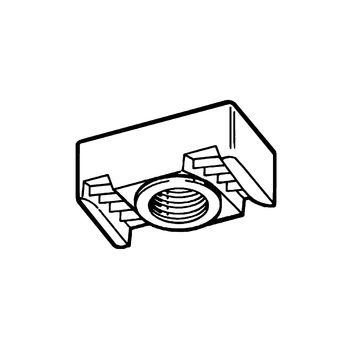

Channel Nut NT HZ 41
Application
For Channels MS 41.
Technical Data
| M8 | M10 | M12 | M16 | |
| Tightening torque 8.8 1) [Nm] | 25 | 40 | 80 | 80 |
| 1) | Using lower steel classes, the value are to be reduced accordingly. |

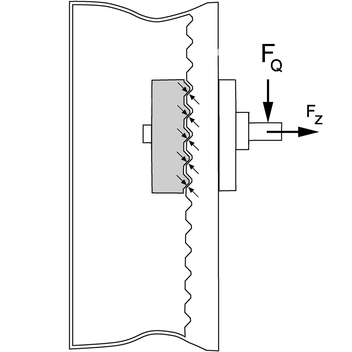

| Channel thickness [mm] | M8 FZ ≤ [kN] | M10 FZ ≤ [kN] | M12 FZ ≤ [kN] | M16 FZ ≤ [kN] | M8 FQ ≤ [kN] | M10 FQ ≤ [kN] | M12 FQ ≤ [kN] | M16 FQ ≤ [kN] | |
|---|---|---|---|---|---|---|---|---|---|
| 1.5 | 3.0 | 6.0 | 7.5 | 7.5 | 4 | 5.5 | 7.5 | 6 | |
| 2.0 | 7.5 | 7.5 | 10 | 10 | 4 | 5.5 | 9 | 6 | |
| 2.5 | 8.5 | 8.5 | 11 | 11 | 4 | 5.5 | 9 | 6 | |
| 3.0 | 8.5 | 8.5 | 13 | 13 | 4 | 5.5 | 9 | 6 |
Note: The permissible load capacities of the channels are to be respected.
| Material: | Steel, cold-forged, electro-galvanised |
