Application

Quick-installation element for efficiently mounting pipe clamps and other components to all Sikla Channels of the 41 series (double channels also).

  • Time-saving due to pre-assembled Blockset instead of 4 single parts.
  • Easy height adjustment inside the channel.
  • Grooved rod is retained, thus preventing any accidental unscrewing.

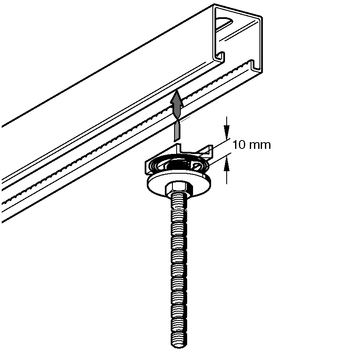

  • The grooves (distance 10 mm) provide for easy cutting with the Rod Cutter PBC, saw-cutting or finishing is not required.

Scope of delivery

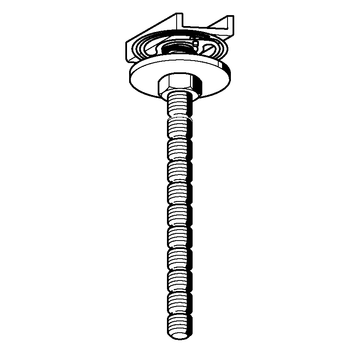

Blockset completely pre-assembled.

Installation

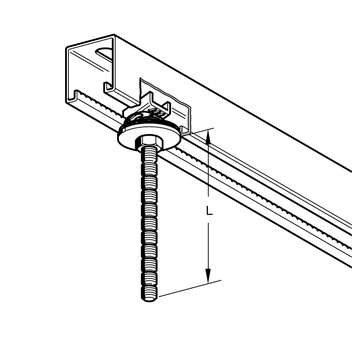

Insert the Blockset into the channel; tighten nut - the job is done!
Dismounting takes place in reverse order by turning the to the left and exerting light pressure on the grooved rod in channel direction.

Technical Data

Type
M
[Nm]
FZ
[kN]
M8 x ... 10 3.3
M10 x ... 18 4.5

FZ = permissible traction at the grooved rod

Note: The point carrying capacity of the channel must not be exceeded.

Material:
Steel, electro-galvanised
TypeL
[mm]
W
[kg]
Quantity
[pack]
Part
number
M8 x 35350,0725 191549
M8 x 75750,0825 191558
M8 x 1251250,1025 191567
M8 x 1751750,1125 191576
M8 x 2752750,1425 191585

M10 x 35350,0925 191594
M10 x 75750,1025 191603
M10 x 1251250,1225 191612
M10 x 1751750,1525 191621
M10 x 2752750,2025 191639
