Application

Suitable for Sikla Channels MS 27.

Scope of delivery

Pre-assembled with washer and nut.

> When using a Holding Bracket for type HM 27 M10, the washer is not needed.

Technical Data

Material:
Steel, cold-forged, electro-galvanised

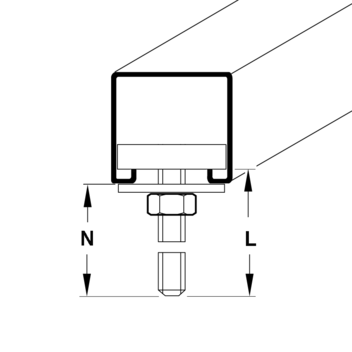

TypeLength L [mm]Available length
of thread [mm]
W
[kg]
Quantity
[pack]
Part
number
HM 27 M8 x 10/1415100,0250 106467
HM 27 M8 x 15/1420150,0350 106476
HM 27 M8 x 25/1430250,0350 106485
HM 27 M10 x 15/1420150,0350 106494
HM 27 M10 x 25/1430250,0450 106500
