Pipe Clamps and Accessories
Stabil D-M16
![](/sixcms/media.php/443/thumbnails/1232_Stabil_D_M_16.2487.tif.45633.png)
![](/sixcms/media.php/443/thumbnails/1240M16M-gr.tif.45634.png)
Application
For installation of pipes required for M&E services and in plant construction.
Scope of delivery

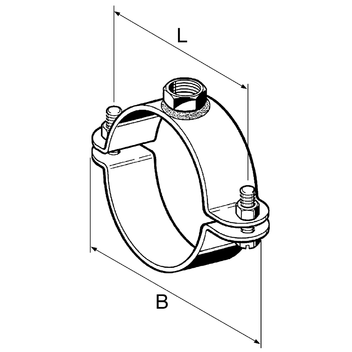

With welded M16 nut; clamping bolts and nuts included in loose form. Other welded nuts (e.g. M20) or inch sockets available on request.
Technical Data
Size range [mm] | Max. adm. load (tension) | Tightening torque [Nm] |
---|---|---|
218 - 277 | 7.4 kN | 10 |
316 - 407 | 9 kN | 20 |
411 - 521 | 15 kN | 20 |
The max. admissible load has been determined by using statistical methods resulting from the breaking loads, observing a max. admissible deformation of
1.5 mm resp. 2 % of the max. tensible pipe dia.
Material: | Steel, electro-galvanised |
Approvals / Conformity
FM-Approval for DN 218 - 277
