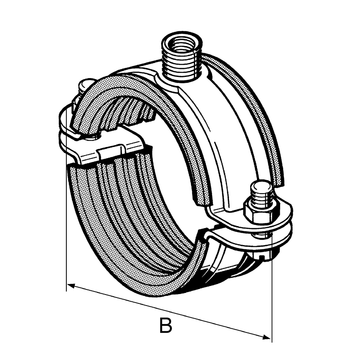

Stabil D-2G/-3G w/ Lining FM
Application
For soundproof installation of pipes required for all M&E services in industrial, residential and public buildings.
Scope of delivery

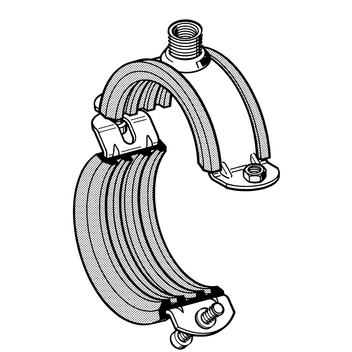

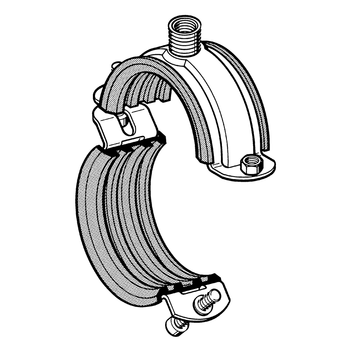

Sizes 29 to 115 mm are equipped with welded nuts for the clamping bolts. On the joint side, the clamping bolt is pre-assembled; the clamping bolt on the opposite side is mounted into the bore hole and retained by a plastic washer, thus preventing any accidental unscrewing.
For sizes 124 and larger the clamping bolts and the required nuts are supplied in loose form.
Technical Data
|
Size [mm] | Working load (tension) | Tightening torque [Nm] |
|---|---|---|
| 29 - 65 | 2,0 kN | 2 |
| 67 - 115 | 2,0 kN | 3 |
| 124 - 162 | 2,9 kN | 5 |
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
Perm. load FZperm,fi in case of fire

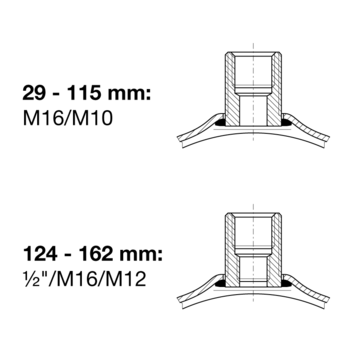

| Size range [mm] | FWD 30 [N] | FWD 60 [N] | FWD 90 [N] | FWD 120 [N] | Deformation δmax [mm] | Thread ≥ |
|---|---|---|---|---|---|---|
| 29 - 65 | 580 | 280 | 170 | 110 | 45 | M10 |
| 67 - 115 | 1550 | 900 | 640 | 400 | 85 | M10 |
| 124 - 162 | 2200 | 1230 | 730 | 470 | 96 | M12 |
| Material: | |
| Metal components: | Steel, electro-galvanised |
| Sound absorption lining: | SBR/EPDM sticked in (black) - (see chapter "Sound Absorption Products") |
Approvals / Conformity
 |  | This product has been awared the RAL quality mark "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655. |
FM-Approval
FM - Pipe Clamps Stabil D and Stabil D-3G PDF | 693.3 KB Approval Statement Stabil D-2G PDF | 16.5 KB
