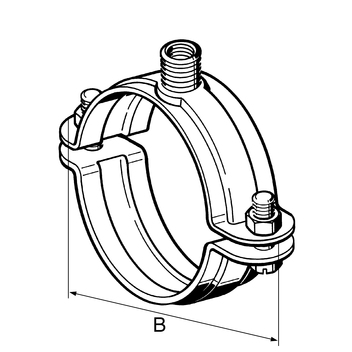

Stabil D-2G/-3G VdS/FM
Application
For installation of pipes required for all M&E services in industrial, residential and public buildings.
Scope of delivery

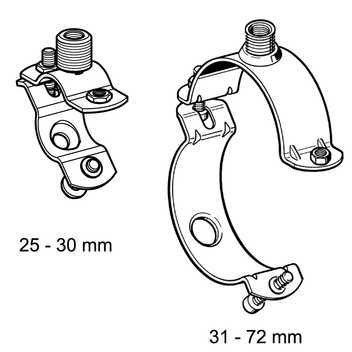

Sizes 25 to 129 mm are equipped with welded nuts for the clamping bolts. On the joint side, the clamping bolt is pre-assembled; the clamping bolt on the opposite side is mounted into the bore hole and retained by a plastic washer, thus preventing any accidental unscrewing. For sizes 133 and larger the clamping bolts and the required nuts are supplied in loose form.
Technical Data

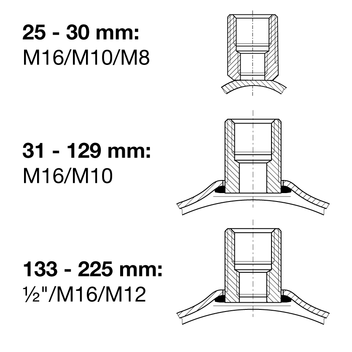

| Size [mm] | Working load (tension) | Tightening torque [Nm] |
|---|---|---|
| 25 - 30 | 2.0 kN | 2 |
| 31 - 72 | 5.0 kN | 2 |
| 76 - 129 | 5.0 kN | 3 |
| 133 - 173 | 8.0 kN | 5 |
| 176 - 225 | 12.5 kN | 10 |
| Material: | Steel, electro-galvanised |
Approvals / Conformity
VdS-Approval No. G4920027 up to 8", * = FM Approval (another pipe clamp with FM Approval is: Stabil D-M16)
VdS - Pipe Clamp Stabil D-3G - G4920027 PDF | 1.3 MB FM - Rohrschellen Stabil D und Stabil D-3G PDF | 693.3 KB Approval Statement Stabil D-2G PDF | 16.5 KB
