Application

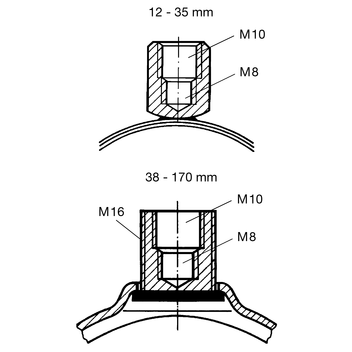

Suitable for installing pipe systems required for all M&E services. For connection options without adapter, see drawing. With Adapter: M12, M16, R 1/2", R 3/4", R 1".
Designed for soundproof ceiling, floor and wall mounting also for the sound insulation requirements according DIN 4109


With sticked interlocking lining, which prevents from accidental loss of lining and allows easy turning and slipping of the pipe during assembly.

Scope of delivery

Two-piece pipe clamp pre-assembled on one side.
With patented quick-set clip on its open side. With 3G triple thread nut. Sizes 1/4" - 1" also available with 2G nut as per drawing.

Technical Data

Size
[mm]
Max. perm.
working load (tension)
Tightening torque
[Nm]
12 - 35 0,8 kN 2
38 - 90 1,3 kN 2
108 - 135 1,9 kN 3
140 - 170 2,2 kN 3

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Perm. load FZperm,fi in case of fire

Size range
[mm]
FWD 30
[N]
FWD 60
[N]
FWD 90
[N]
FWD 120
[N]
Deformation
δmax [mm]
Thread

12 - 35 280 120 70 40 42 M10
38 - 56 220 100 60 30 43 M10
57 - 80 380 180 110 70 41 M10
83 - 90 470 220 130 80 45 M10
108 - 170 560 310 210 150 62 M10

Material:
Clamp:
Cold-worked steel, electro-galvanised
Sound absorption lining:
SBR/EPDM, black (see chapter "Sound Absorption Products")
Sound Absorption:
up to 18 dB(A)

Approvals / Conformity



This product has been awarded the RAL quality marks "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.
Size range
[mm]
NBMaterial
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number

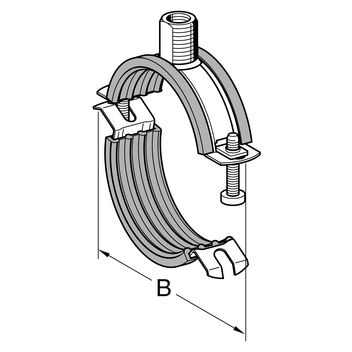

12 - 201/4" - 3/8"20 x 1,5 550,06100 154804
21 - 271/2" - 3/4"20 x 1,5 610,07100 154813
28 - 351"20 x 1,5 710,07100 154822
38 - 451 1/4"20 x 1,5 820,09 50 154831
48 - 561 1/2"20 x 1,5 930,09 50 154840
57 - 632"20 x 1,51040,11 50 154859
64 - 7120 x 1,51120,12 25 154868
73 - 802 1/2"20 x 1,51210,13 25 154877
83 - 903"25 x 2,01410,22 25 154886
108 - 1144"30 x 2,01700,33 25 154895
116 - 12530 x 2,01790,36 25 154901
127 - 13530 x 2,01900,38 25 154910
140 - 1465"30 x 2,02050,40 25 154929
159 - 1706"30 x 2,02300,46 25 154938
