Fixings and Fastenings

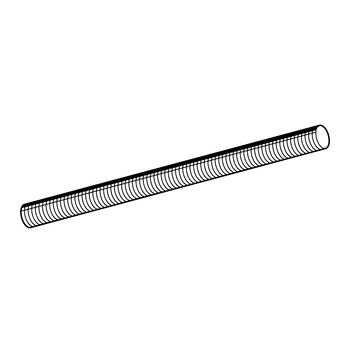

Threaded Stud GST 8.8

Application

Due to strength class 8.8 the Threaded Studs are suited for applications with bending loads (e.g. risers).

Technical Data

Thread
Permissible load (tension)
M10 24.7 kN

Length [mm]
40
70
100
Permissible bending load 0.75 kN 0.43 kN 0.30 kN




σzul ≤ 431 N/mm 2
f ≤ 3 mm

Material:
Steel, strength class 8.8, galvanised
Surface:
yellow passivated
TypeLength
[mm]
W
[kg]
Quantity
[pack]
Part
number
M10/40400,02100 116782
M10/70700,03100 116783
M10/1001000,05100 116781
