Fixed Point Packages

Chilled Water Fixed Point Clamp FKS

Application

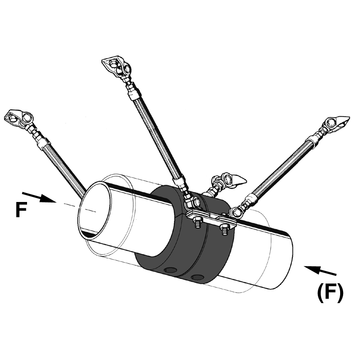

Chilled Water clamp for the absorption of axial forces.
Especially used for risers or as fixed point clamp. The contraction forces are transferred to the pipe clamp by a steel pressure ring welded to the perimeter of the steel pipe. The clamp is anchored to the building structure via an installed anchor bracket.

Scope of delivery

4 half shells, 4 splice plates, 1 pressure ring as well as bolts and nuts.
Delivery time: 10 working days

Installation

1.
Weld pressure ring to pipe at location of required anchor point and conserve subsequently.
Welding process, filler metal and dimensioning of the weld size are to be specified by the customer. For stainless steel pipes select a suitable welding filler (recommendation: 1.4370) to avoid contact corrosion.
2.
Apply a thin bead of sealant to the inside adjacent shell faces of the clamp.
3.

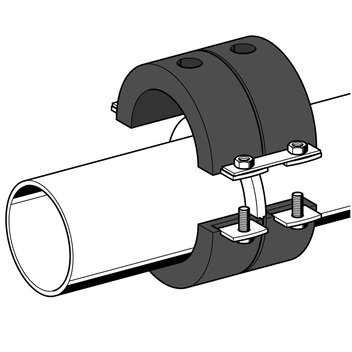

Position clamp shells on either side of the pressure ring and connect via splice plate.
4.
Check if joint between the clamps is closed tightely by the sealant.
5.
Install refrigeration clamp by means of Mounting Kit.

Technical Data

Insulation:
Closed-cell PUR-foam RG 250 kg/m3
Diffusion resistance:
µ ≥ 1000
Thermal conductivity:
λ = 0.042 W/mK (0°C)
Fire resistance:
EL (DIN EN 13501-1)
Temperature resistance:
-50°C up to + 105°C

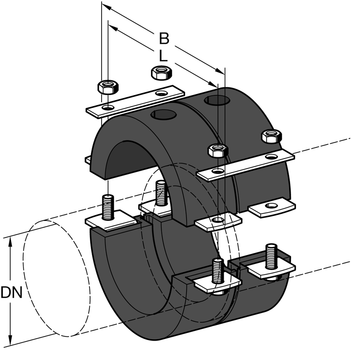

Type
[NB]
Insulation
thickness
S [mm]
Max. Load of
Fixed Point
shear [kN]
Clamping
bolts
L
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
76,1302,5M10 x 301732032,021 190271
88,9303,0M10 x 301812112,281 190289
108304,0M10 x 301732033,481 190298
114,3404,0M12 x 402382744,241 190307
133404,5M12 x 402643004,521 190316
139,7404,5M12 x 402643004,821 190325
168,3406,0M12 x 402923285,621 190343
219,1609,0M12 x 5039943916,141 190352
2736012,0M16 x 5045349317,541 190379
323,96015,0M16 x 5050454423,341 190388
