Ducting Supports

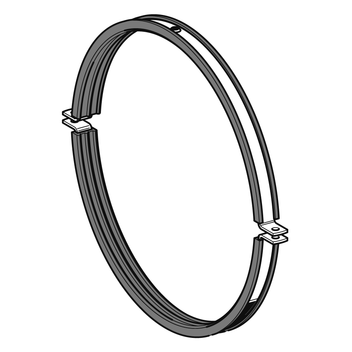

Ducting Clamp PLU > DN 560 with Lining

Application

Designed for installing spiral-seam ducts for industrial ventilation systems (according to DIN 24145).
For soundproof installation of pipes (according to DIN 4109).

Scope of delivery

Without bolts and nuts. Without connection nut.

Installation

Two-sided fixing to M12 threaded rods

Technical Data

Material:
Steel, pre-galvanised as per DIN EN 10346
Sound absorption lining:
SBR/EPDM, black (see chapter "Sound Absorption Products")
Temperature range:
-50°C up to +110°C

Type
perm. Working load
560 - 900 1.5 kN
1000 - 1250 2.5 kN

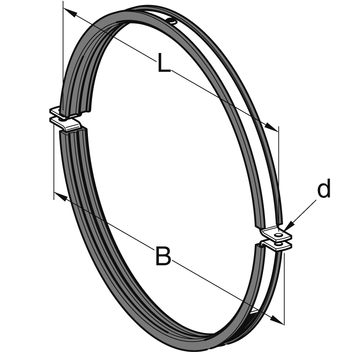

Type / NBMaterial
[mm]
B
[mm]
L
[mm]
d
[mm]
W
[kg]
Quantity
[pack]
Part
number
56030 x 2,563060412,51,301 190181
60030 x 2,567264612,51,401 190199
63030 x 2,570267612,51,461 190208
71030 x 2,578275612,51,641 190217
80030 x 2,587284612,51,841 190226
90030 x 2,597294612,52,061 190235
100040 x 3,01076105012,53,511 190244
112040 x 3,01196117012,53,921 190253
125040 x 3,01325129912,54,361 190262
