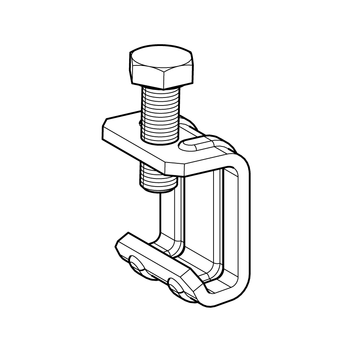

Application

For connecting formed duct parts. When tightening the Bracket, the flanges of the duct parts are pressed against each other.
The ducting bracket is suitable for ducts with flange widths of 20 mm, 30 mm and 40 mm.

Scope of delivery

Pre-assembled with M8 x 20 hexagon bolt.

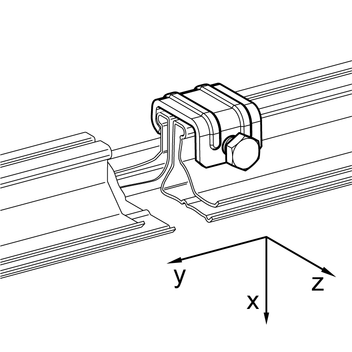

Installation

The distance between two Ducting Brackets should not exceed 200 mm. Tighten the bolt with a torque of approx. 5 Nm.

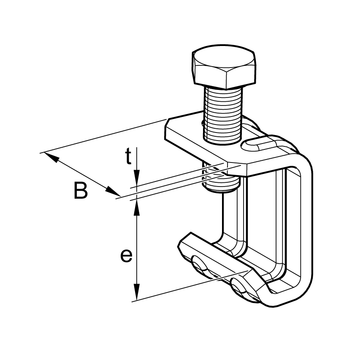

Technical Data
