Ducting Supports

Ducting Angle LUW F

Application

Ducting Angle for a direct installation to the flange of rectangular ventilation ducts. Due to this external connection it's not necessary to penetrate the duct, therefore flow losses do not occur. In addition there are no leakages and flow noises. No disturbing screw tips interfere with cleaning operations.
The Ductings Angles LUW F exceed the demands of VDI Standard 6022 (Hygiene requriements for ductings)
Type LUW SF is suitable for soundproof duct installations according to DIN 4109.

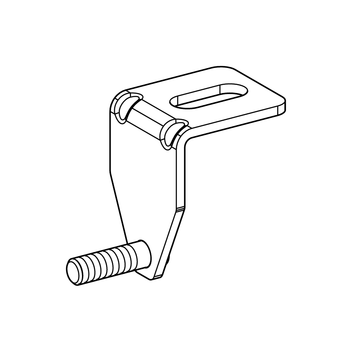

The slot allows adjustment facilities to compensate drill hole differences and construction tolerances.

Scope of delivery

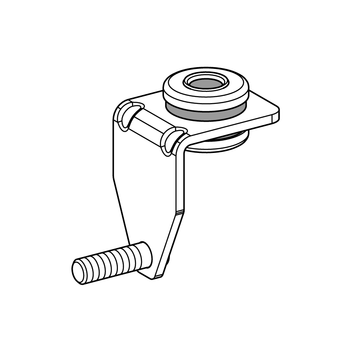

With a pre-assembled sound absorption head

Installation

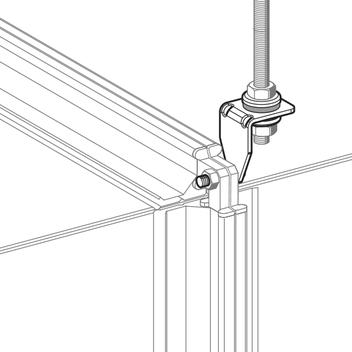

The ventilation duct could be connected directly to the pre-assembled grub screw.

Technical Data

Working load:
0,8 kN
Material (Metal component):
Steel, pre-galvanised
Types SF:
Inserted insulation:
Up to 8,7 dB (A)
Sound absorption unit:
EPDM, black
Temperature range:
-50 up to +110°C
TypeThread
connection
Connection to
building structure
Material
[mm]
W
[kg]
Quantity
[pack]
Part
number
F M8M8M8/M1035 x 3,00,08100 113331
SF M8M8M8/M1035 x 3,00,08100 113329
SF M10M10M8/M1035 x 3,00,08100 113330
