Support Bracket WK 725/400
 |  Bore for Tie Rod: ø 11 |
 |  σperm ≤ 160 N/mm2 |
Anchor load classes [kN]

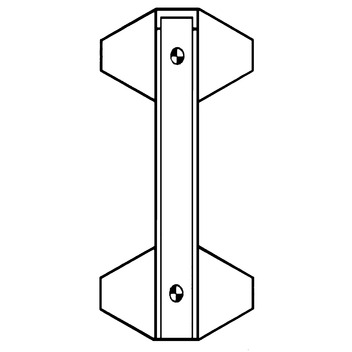

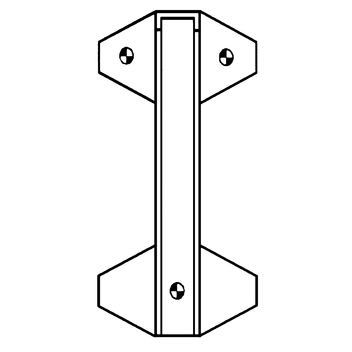

| Figure | Arrangement 1 | Arrangement 2 | fmax |
|---|---|---|---|
| A | 2 x 1.5 - | - - | L/3000 |
| B | 1 x 3.5 1 x 1.5 | 3 x 1.5 - | L/2000 |
| C | 1 x 6.0 1 x 2.5 | 2 x 3.5 1 x 1.5 | L/1000 |
| D | 1 x 9.0 1 x 3.5 | 2 x 6.0 1 x 2.5 | L/900 |
| E | 1 x 13.0 1 x 3.5 | 2 x 9.0 1 x 3.5 | L/700 |
| F | - - | 2 x 13.0 1 x 6.0 | L/500 |
