Brackets

Fixing Bracket MW

Application

Suitable for Sikla Channel System 41.
Useful addition to Support Brackets for integration in crossbars and other structures composed of channels with a width of 41 mm.

Technical Data

Nominal load:
4,5 kN
Material:
Steel strip, cold-worked, electro-galvanised
TypeB
[mm]
s
[mm]
W
[kg]
Quantity
[pack]
Part
number

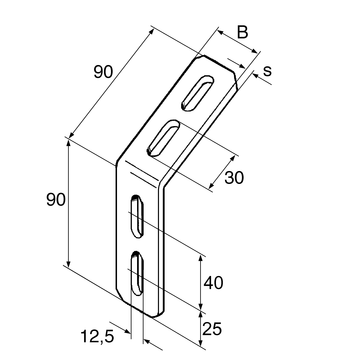

90/90/45°4050,2225 106759

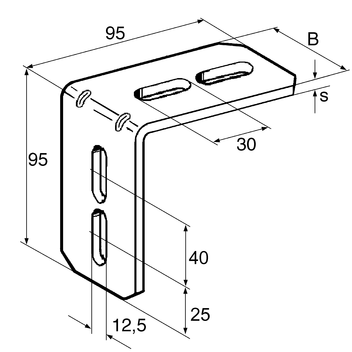

95/95/90°4050,2225 114936
