Application

U Bolt RUB 46 for fastening pipes in utility systems to the Profile PRO 46. U Bolts are used as a fixed point or as a guide for horizontal and vertical pipes.

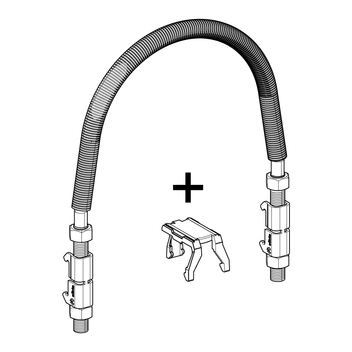

Scope of delivery

Completely pre-assembled as a set, consisting of:
2 x Profile Clip MPK 46
2 x nuts on each side
1 x U Bolt with sheath (for electro-chemical separation)
1 x Slide Support GA 41-46 (enclosed)

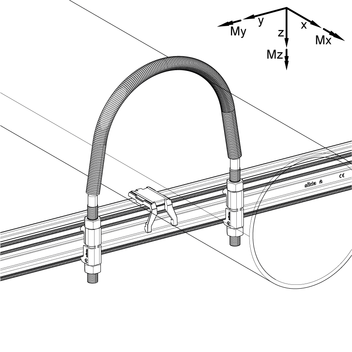

Installation

When used as a guide bearing, nuts arranged on both sides at the top and bottom of the round steel bracket must be tightened. The pipe should remain freely movable.
When used as a fixed point, first tighten the lower nuts until the pipe is clamped. Then tighten the upper nuts. For fixed points, the permissible forces of the structural connection and the bending loads of the U Bolt must not be exceeded.

Technical Data

Type
± Vx,zul
[kN]
± Vy,zul
[kN]
- Vz,zul
[kN]
RUB 46 1,05 1,08 5,43

Material:
Steel, HCP
U-bolt sheath:
PA 6.0, halogen-free, UV-resistant

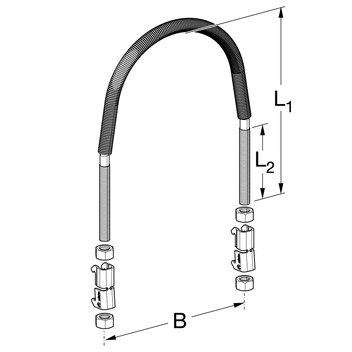

TypeNBB
[mm]
L1
[mm]
L2
[mm]
ThreadW
[kg]
Quantity
[pack]
Part
number
21,3 mm15 / 1/2"428771M80,1350 805053
26,9 mm20 / 3/4"479273M80,1450 805054
33,7 mm25 / 1"549977M80,1450 805055
42,4 mm32 / 1 1/4"6210780M80,1550 805056
48,3 mm40 / 1 1/2"7011580M80,1550 805057
60,3 mm50 / 2"8413090M100,2650 805058
76,1 mm65 / 2 1/2"10014690M100,2850 805059
88,9 mm80 / 3"11416090M100,3050 805060
108 mm13618095M120,4625 805061
114 mm100 / 4"14218695M120,4725 805062
133 mm16120595M120,5125 805063
139 mm125 / 5"16821295M120,5225 805064
159 mm18723195M120,5510 805065
168 mm150 / 6"19824295M120,5710 805066
219 mm200 / 8"24729195M120,6610 805067
