siFramo 80

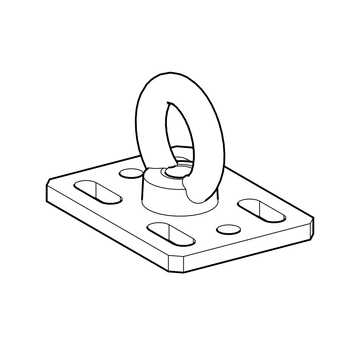

Mounting Plate GPL F 80 Eye HCP
Application
Adapter plate for installing bracings to Beam Section TP F80 or Channel System by means of wire ropes.
Installation

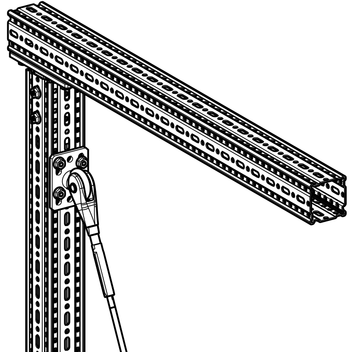

Direct connection of plate to Beam Section TP F80 by means of 4 Self Forming Screws FLS F80. Connection to the Channel System by means of Speed Nut CC41 and Hexagon Bolts. The two drilled holes in the Adapter Plate mean that the Plate may also be installed to concrete.
Technical Data

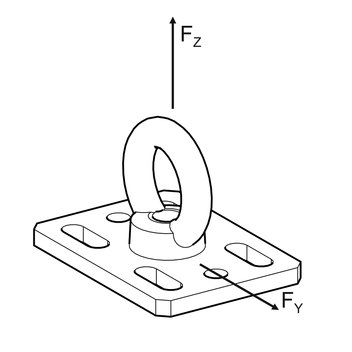

Type | Perm. load Fz [kN] | Perm. load Fy [kN] |
---|---|---|
GPL F80 Eye | 7 | 5 |
Material: | Steel, HCP |
